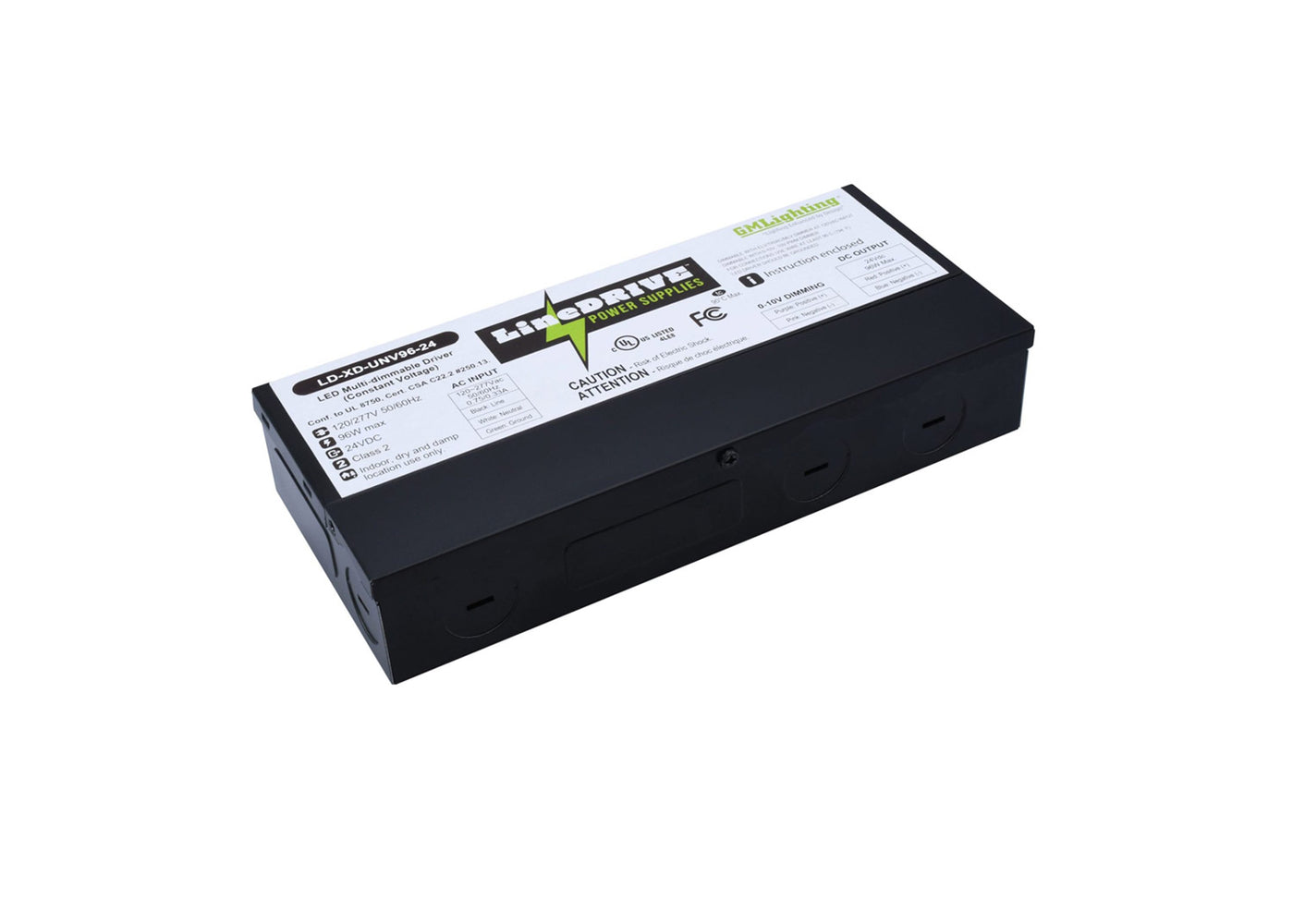

LineDRIVE XD 24VDC ElectronicLED MULTI Dimmable Power Supplies
by GM Lighting
$60.30
SKU LD-XD-UNV20-24
Product Description
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
- Output: Class 2, 12V/24VDC, constant voltage
- Input: 120V / 277V
- Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
- Minimum dimming: 1%
- Stable operation, flicker-free dimming
- Compatible with typical phase dimmers and 0-10V controls
- Integrated wiring compartments with separate line voltage
and low voltage sectionst - Line voltage compartment meets NEC code,
up to (3) 12 AWG conductors - Over-current, over-voltage and over-temperature protection
