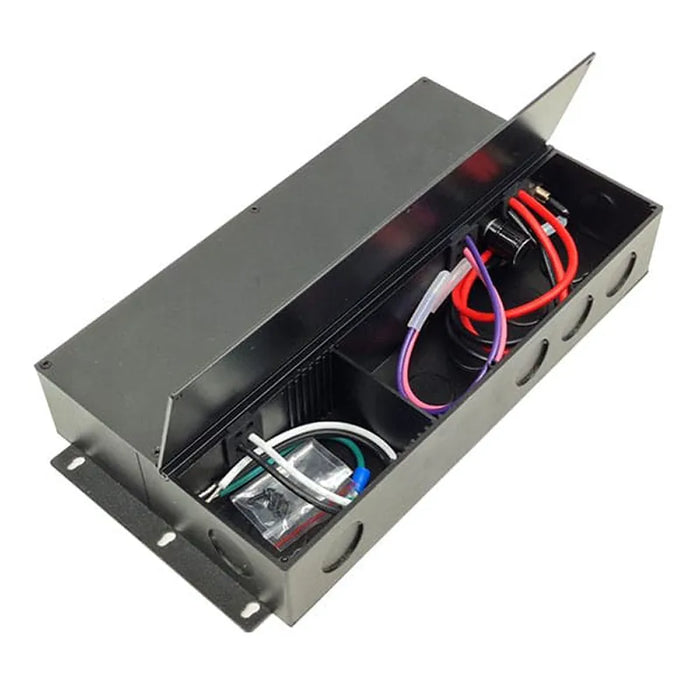

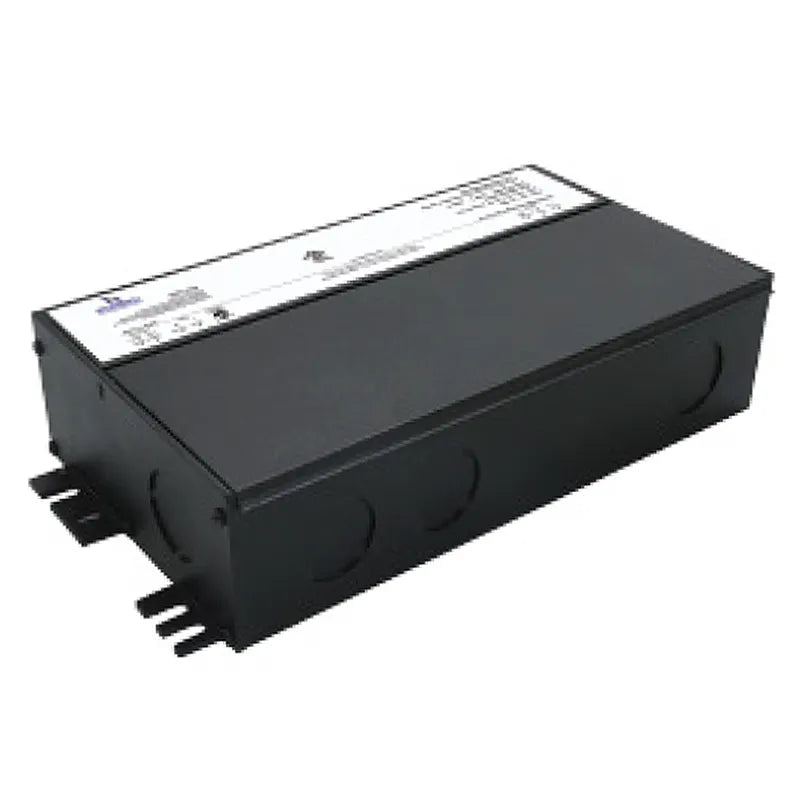

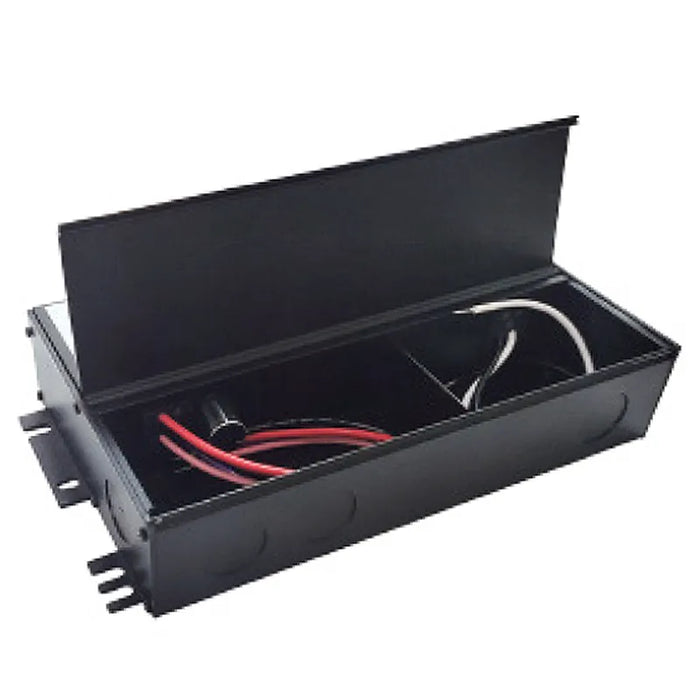

5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
- 24V DC Constant voltage LED Drivers
- 5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Dedicated line voltage and low voltage wiring compartments
- Short-Circuit Protection: Hiccup Mode, and Automatic
Recovery - Over-Voltage Protection: Shut Down the Output When
Non-Load Voltage is ≥28V, and Automatic Recovery - Class 2 / Type HL / FCC Compliant
- cULus Listed
- Dry, Damp, Wet location rated
