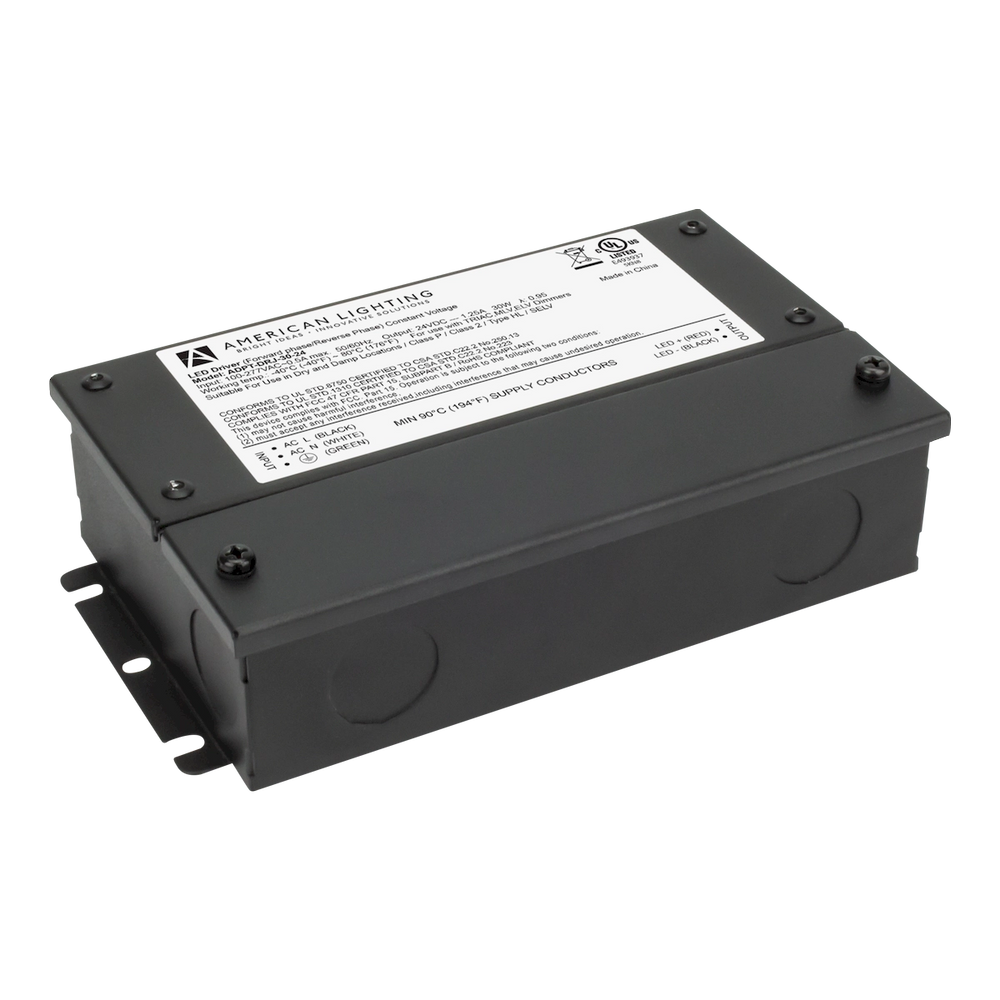

Adaptive Driver with Enclosed Leads and Knockouts 30 Watts 24V DC
$67.52
SKU ADPT-DRJ-30-24

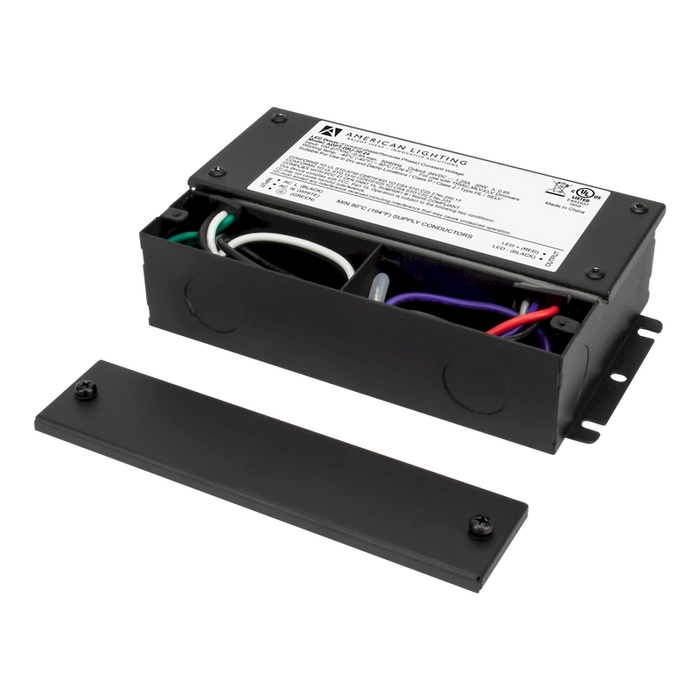

24VDC 30W PHASE CUT CONSTANT VOLTAGE DRIVER W/JUNCTION,with 3/8" cable clamp (2 sets)
SERIES ADPT-DRJ 30W
INPUT VOLTAGE 100-277V AC
INPUT CURRENT 0.5A@100V
OUTPUT VOLTAGE 12VDC or 24VDC
RATED CURRENT 2.5A@12VDC / 1.25A@24VDC
POWER FACTOR 0.99@120V / 0.98@277V
MIN LOAD 3W
MAX LOAD 30W
EFFICIENCY > 79%
DIMENSIONS 6.49” (165mm) L x 3.6” (90mm) W x 1.02” 40mm) H
DIMMING Phase Dimming / MLV / ELV / TRIAC
STORAGE TEMP -40°F to 176°F (-40°C to 80°C)
AMBIENT TEMP -40°F to 140°F (-40°C to 60°C)
OPERATING TEMP -40°F to 140°F (-40°C to 60°C) — See Derating Curve
RATING cULus Listed for Wet locations
Specification Sheet
